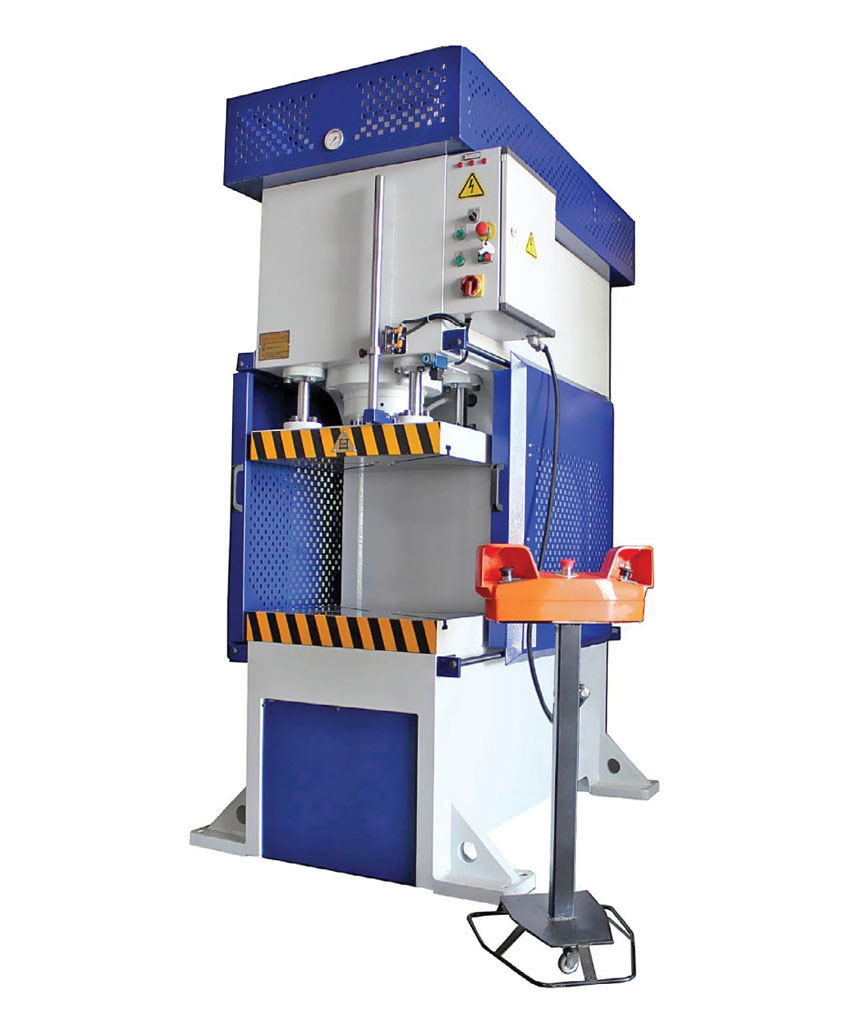

Single-Function C-Frame Presses
Standard equipment
– Welded and milled monoblock steel frame
– Chrome-plated and hardened cylinder
– Working table with T-slots
– Hydraulic block designed to EN standards
– Adjustable speed
– Adjustable pressure
– Load check valve
– Air cooling or heat exchanger
– HMI touch operator panel
– Siemens S7 series PLC
– Remote access via the Internet
– Light curtain
– Safety PLC
– Two-hand control
– Reset and emergency stop buttons
– 2-year warranty
– CE certificate
Fully automated line
Each line is designed taking into account the specifics of the product range and the expected output. The use of eccentric presses guarantees high stamping precision, dimensional repeatability and reliable operation even under intensive use.
The ability to integrate with automatic material feeding, finished product pick-up and packing systems makes it possible to create a complete production line, increasing process efficiency, reducing operating costs and ensuring high quality of the finished products.
| Model | CFSS 30 | CFSS 60 | CFSS 100 | CFSS 150 | CFSS 200 | CFSS 250 |
|---|---|---|---|---|---|---|
| Press force (TON) | 30 | 60 | 100 | 150 | 200 | 250 |
| Table size (mm) | 500×500 | 600×500 | 800×500 | 1000×600 | 1000×600 | 1100×600 |
| Stroke (mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Daylight (mm) | 500 | 500 | 500 | 600 | 600 | 600 |
| Throat depth (mm) | 280 | 310 | 310 | 360 | 370 | 370 |
| Pump (cm³) | 16 | 19 | 19 | 45 | 45 | 45 |
| Motor (kW) | 7,5 | 11 | 11 | 18,5 | 18,5 | 18,5 |
| Approach speed (mm/s) | 150 | 100 | 110 | 130 | 130 | 130 |
| Return speed (mm/s) | 180 | 150 | 160 | 180 | 180 | 180 |
| Working speed (mm/s) | 10 | 10 | 10 | 5-15 | 5-12 | 5-10 |
| Dimensions (L×W×H mm) | 1800x1400x2600 | 1900x1400x2600 | 1900x1700x2930 | 2400x1900x3500 | 2400x1900x3700 | 2400x2000x3900 |
| Weight (kg) | 3000 | 3500 | 5500 | 12000 | 14500 | 15500 |
Photo gallery
Frequently asked questions
The line is designed for rainwater system products such as gutters and downpipes. It can be configured for a wide range of profiles and sizes according to customer requirements.
Yes. With Macring's cassette exchange system, multiple gutter and downpipe products can be produced on a single line, improving flexibility and reducing the need for separate production equipment.
The line can be supplied as a manual, semi-automatic or fully automatic solution. Manual lines use a receiving table, semi-automatic lines include a manipulator, and fully automatic lines can use industrial robots for handling, packing and pallet stacking.
Yes. Fully automatic configurations can include industrial robots that handle ready products, feed them into an automatic packing system and stack packed products on pallets using a pallet conveyor.
